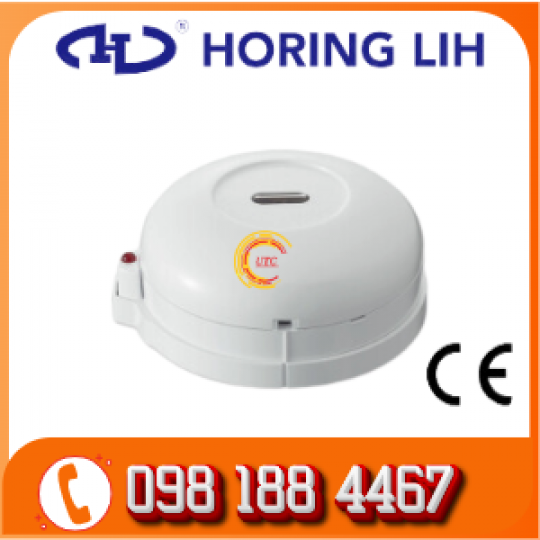

Đầu Dò Lửa Horing AH-0014
-
1050
-
Giá: Liên hệ
-
Model AH-0014
Type 2 wire 3 wire 4 wire
Alarm Contact N/A N/A 0.8A @30V DC, 0.4A @125V AC
Voltage Range 12 ~ 30V DC
Alarm Current @24V DC 470Ω 40mA 40mA 35mA
Standby Current @24V DC 470Ω under 100μA
Sensor Type Ultraviolet
Sensitivity Angle 120°
Sensitivity Range It can detect flame of 15mm at distance of 3m
Ambient Temperature -10℃ ~ +55℃
Material Fire-proof plastic
Dimensions 111mm(Dia.) x 47mm(H)
Weight About 170g
Color White
