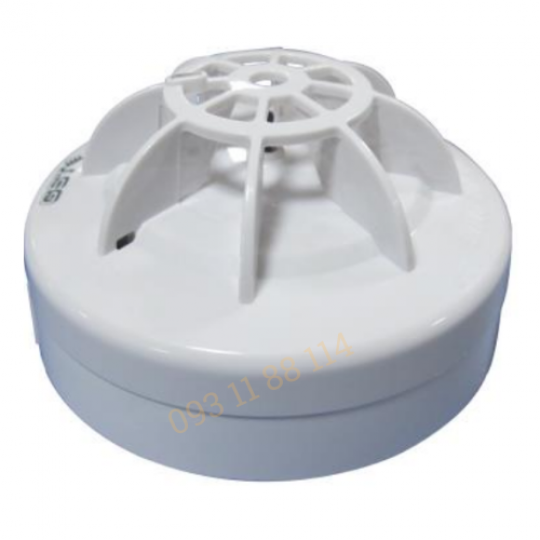

Đầu báo nhiệt gia tăng và cố định loại thường DC-M9103 (UL)

Hãng sản xuất: GST
Xuất xứ: China
Catalogue: DI-M9103 Intelligent Rate of Rise and Fixed temperature Heat Detector

Thêm vào giỏ hàng Đặt hàng

Thông tin về sản phẩm:
- Phù hợp với UL 521
- Có thể lập trình nhiệt độ cố định
- Có đầu ra cho đèn báo chỉ thị

Operating Voltage	Loop 24V(16V - 28V)
Standby Current	≤ 0.6mA
Alarm Current	≤1.5mA (without remote indicator) ≤ 3.5mA (with remote indicator)
Indicator	Red, Flashes in polling, and illuminates in alarming
Sensitivity	Action Temperature :135°F (57.2°C ) Response rate of rise:15°F /min (8.3°C /min)
Maximum spacing	50 ft. (15.2 m)
Remote indicator output	Polarity-sensitive output, Directly connects to remote indicator (built in 10k resistor in series. Maximum output current is 2.0mA); The remote indicator is quiet in polling and will flash in alarming
Programming Method	Electronically programmed
Code Range	One address within 1 - 242.
Class Setup	Rate of rise and fixed temperature (default), and fixed temperature programmable
Wiring	Non-polarized 2-core for loop. Polarized 2-core for remote indicator
UL Temperature Range	32°F (0°C) - 100°F (37.8°C) 0 - 95%, non-condensing
Operating Temperature	14°F (-10°C) - 122°F (+50°C) 0 - 95%, non-condensing
Ingress Protection Rating	IP2X
Dimensions	Diameter: 100mm Height: 53.3mm (with base)
Mounting Hole Distance	45mm - 75mm
Weight	About 110g (with base)
