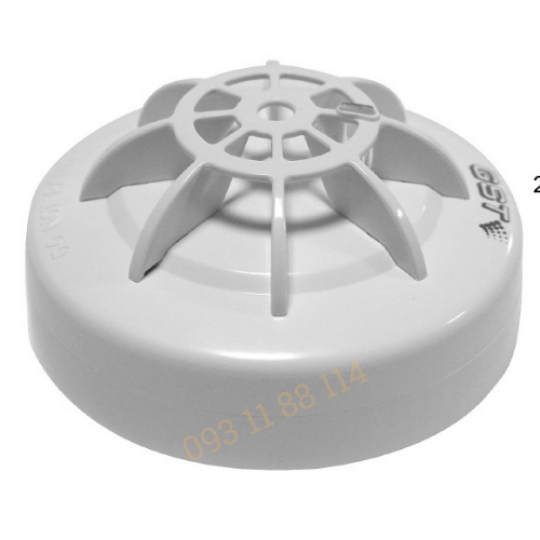

Đầu báo nhiệt gia tăng, cố định DC-9103E

Hãng sản xuất: GST
Xuất xứ: China
Catalogue: DC-9103E Conventional Rate of Rise and Fixed Temperature Heat Detector

Thêm vào giỏ hàng Đặt hàng

Thông tin về sản phẩm:
1: Chân Dương Tín hiệu IN
2: Chân Dương Tín hiệu Out
3: Chân âm Tín hiệu IN - Out
4: Chân âm lắp đèn báo phòng

Operating Voltage	24VDC(16VDC~28VDC)
Standby Current	≤60μA
Alarm Current	≤55mA
Fire LED	Red, periodically flash once in polling when the status is set to “ON”; don’t illuminate when the status is set to “OFF”. Periodically flash twice in fault; illuminate in alarming.
Remote Indication Output	Polarity-sensitive, directly connecting with remote indicator (built in 10k resistor in series, maximum output current is 2.0mA); The remote indicator does not illuminate in normal and flashes in alarm.
Class and Setup	Classes A1R, A2S, BS programmable.
Maximum Ripple Voltage	2V ( peak-to-peak)
Alarm Reset	Instantaneous cut-out (10s Min, 1.0VDCMax.)
Wiring	Polarized two wire
Ingress Protection Rating	IP2X
Ambient Temperature	Class A1: -10℃~+50℃ Class A2: -10℃~+50℃ Class B: -10℃~+65℃
Typical Fixed Temperature	Class A1: 58℃
	Class A2: 62℃
	Class B: 77℃
Relative Humidity	≤95%, non-condensing
Material	ABS
Dimensions	Diameter: 100mm Height: 53.3mm (with base)
Mounting Hole Spacing	45mm~75mm
Weight	About 110g (with base)
