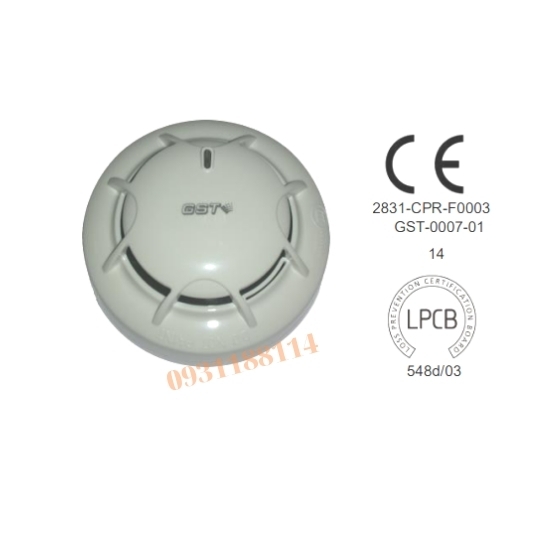

Đầu báo khói, nhiệt kết hợp DC 9101E

Hãng sản xuất: GST
Xuất xứ: China
Catalogue: DC-9102E Conventional Photoelectric Smoke Detector

Thêm vào giỏ hàng Đặt hàng

Thông tin về sản phẩm:
- Phù hợp sử dụng trong môi trường rộng
- Có thể tháo rời, bảo trì dễ dáng buồng cảm biến
- Đèn LEd quan sát với 360 độ

Operating Voltage	24VDC(16VDC～28VDC )
Standby Current	≤60μA
Alarm Current	≤55mA
Fire LED	Red, periodically flash once in polling when the status is set to “ON”; don’t illuminate when the status is set to “OFF”. Periodically flash twice in fault or sensing chamber dirty; illuminate in alarming.
Remote indication output	Polarity-sensitive output, directly connecting with remote indicator (built in 10k resistor in series, max. output current is 2mA); don’t illuminate when in normal; flash in alarming.
Max. ripple voltage	2V(peak to peak value)
Alarm reset	Instant power down (10s Min, 1.0VDC Max
Sensitivity setting	The sensitivity can be set by hand held programmer. There are two sensitivity levels: level 1 (default), level 2.
Wiring	Two-wire, polarity sensitive.
Environment Temperature	-10℃～+50℃
Relative Humidity	≤95%, non condensing
Material	ABS
Ingress Protection Rating	IP2X
Dimension	Diameter:100mm Height: 44.5mm (without base)
Mounting Hole Spacing	45mm～75mm
Weight	About 110g
