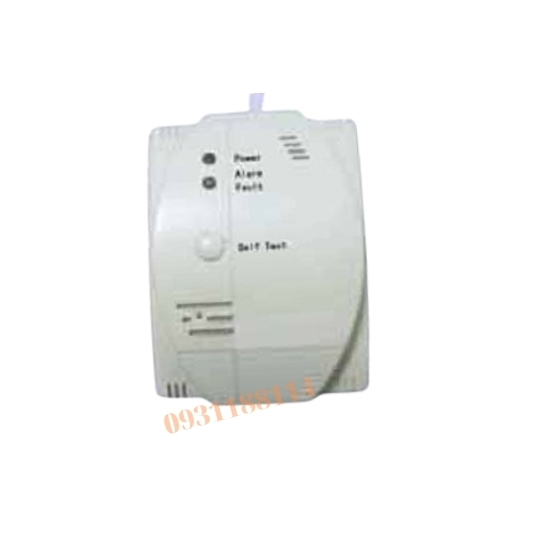

Đầu báo gas
Đầu báo gas
Hãng sản xuất: GST
Xuất xứ: China
Catalogue: Conventional Gas Detector C-9602LW
-
C 9602
-
Liên hệ
-
-
-
- +
-
473
- Thông tin sản phẩm
- Bình luận
Thông tin về sản phẩm:
- Cấp nguồn 220 VAC
- Dùng cho khi LPG, khí Gas, khi từ Than
- Có thể chuẩn đoán giam sát sự cố lỗi bên trong
- Dễ dàng cài đặt
| Operating Voltage | AC187V AC253V |
| Power Consumption |
Monitoring State ≤ 4W Alarming State ≤ 5W |
|
Output Capacity and Control Mode Active Contact Driving ability |
Applicable to 12V one-way DC pulse solenoid valve 1000μF capacitance discharge |
| Passive Contact | Passive, normally open contact, capacitance 220V/1A, for controlling connected devices |
| Alarm Density |
Natural Gas: 5500ppm (11%LEL) Coal Gas: 600ppm (1.5%LEL) Liquefied Petroleum Gas: 2800ppm (14%LEL) |
| Indicators: Power: Green; Alarm: Red; Fault: Yellow | |
| Warm-up state | Green LED flashes at a frequency of 1Hz. After warm-up, the green, red and yellow LEDs will flash once in turn and the buzzer will sound, showing the detector enters monitoring state. |
| Monitoring State | Green LED lights normally |
| Alarming State | Red LED flashes at a frequency of 2Hz, and green LED lights normally |
| Fault State | Green and yellow LED lights normally |
| Buzzer | frequency of 2Hz during alarming, and 0,3Hz in fault |
| Self Test | Press "Salf-Test" during warm-up and monitoring state, the three LEDs will flashes in turn and the buzzer sounds three times |
| Life of Sensor | 5 years |
| Temperature | 0ºC~ +50 ºC |
| Relative Humidity | ≤95% , no condensation |
| Dimension | 176x80x45mm |
| Degree of Protection of Enclosure | IP30 |
| Material and color of Enclosure | ABS, ivory white |
| Weight | 400g |
| Mounting Hole Distance | 156mm |
